SAMPLING DEVICES

Accurate air quality assessment begins with selecting the right sampling strategy. Our range of sampling devices supports both intermittent and continuous monitoring approaches—each suited to different analytical goals, regulatory requirements, and environmental conditions.

INTERMITTENT AIR MONITORING

Air samples are collected manually or using semi-automated equipment at predefined intervals—typically once per day, per week, or over several days. Unlike continuous monitoring systems, which deliver real-time data, discontinuous sampling focuses on capturing representative particle samples over a specified period. These samples are collected on filters or substrates and subsequently analyzed to determine mass concentration, chemical composition, morphology, and other characteristics.
This approach is particularly useful for regulatory compliance, source attribution, or when high-resolution chemical or elemental analysis is required. It also offers greater flexibility in deployment and can be more cost-effective in environments where continuous monitoring is not necessary or feasible.

Staub-Monitoring

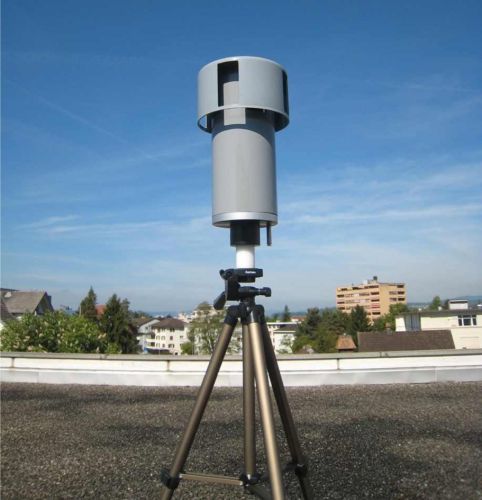

PASSIVE SAMPLERS SIGMA-2

Sigma-2 (VDI 2119:2013)
  • Sigma-2 Coarse Mode (PM10-2.5) measurements validated with gravimetric/optical (FIDAS) comparison measurements
  • Boron substrates for particle characterization by SEM/EDS

ACTIVE SAMPLERS

Rent of low volume samplers for gravimetry & chemical analysis
  • PM10 / PM2.5 standard reference sampling device according to
    CEN EN 12341 (LVS6-RV, Leckel)
  • TSP sampling head according to VDI 2463 pages 5 und 8
  • Daily to weekly samples (LVS6-RV, Leckel)
  • Weekly to monthly samples (MiniVS-C, Leckel)
  • Automatic sample changer for up to 17 samples (SEQ47/50-RV) incl. Peltier cooler

FILTERS & SUBSTRATES

CONSUMABLES FOR SAMPLING DEVICES
  • Boron-doped substrates for SEM/EDS particle characterization
  • Quartz fiber filters for organic compound analysis (OC/EC)
  • Glass fiber filters for gravimetric analysis
  • Pre-treated filters for heavy metal or ion analysis
  • Compatible with LVS, HV, and cascade samplers
  • Delivered pre-conditioned and pre-weighed on request

CONTINUOUS AIR MONITORING

Continuous monitoring involves the use of automated instruments that measure air pollutants in real time or at high-frequency intervals (e.g. every minute or hour). These systems operate 24/7 and are typically installed at fixed locations to provide uninterrupted data on pollutant levels such as PM10, PM2.5, NO₂, O₃, CO, and others.
The data collected is processed and often transmitted automatically to centralized databases, enabling immediate analysis, trend detection, compliance verification, and the issuance of public health alerts when thresholds are exceeded.
Continuous monitoring is essential in urban settings, near industrial facilities, or along high-traffic corridors where pollution levels fluctuate rapidly and detailed temporal resolution is critical. It is also widely used by regulatory agencies and research institutions for air quality modeling and policy evaluation.

Let us know your specific needs, and we will be pleased to provide you with a customized offer.
